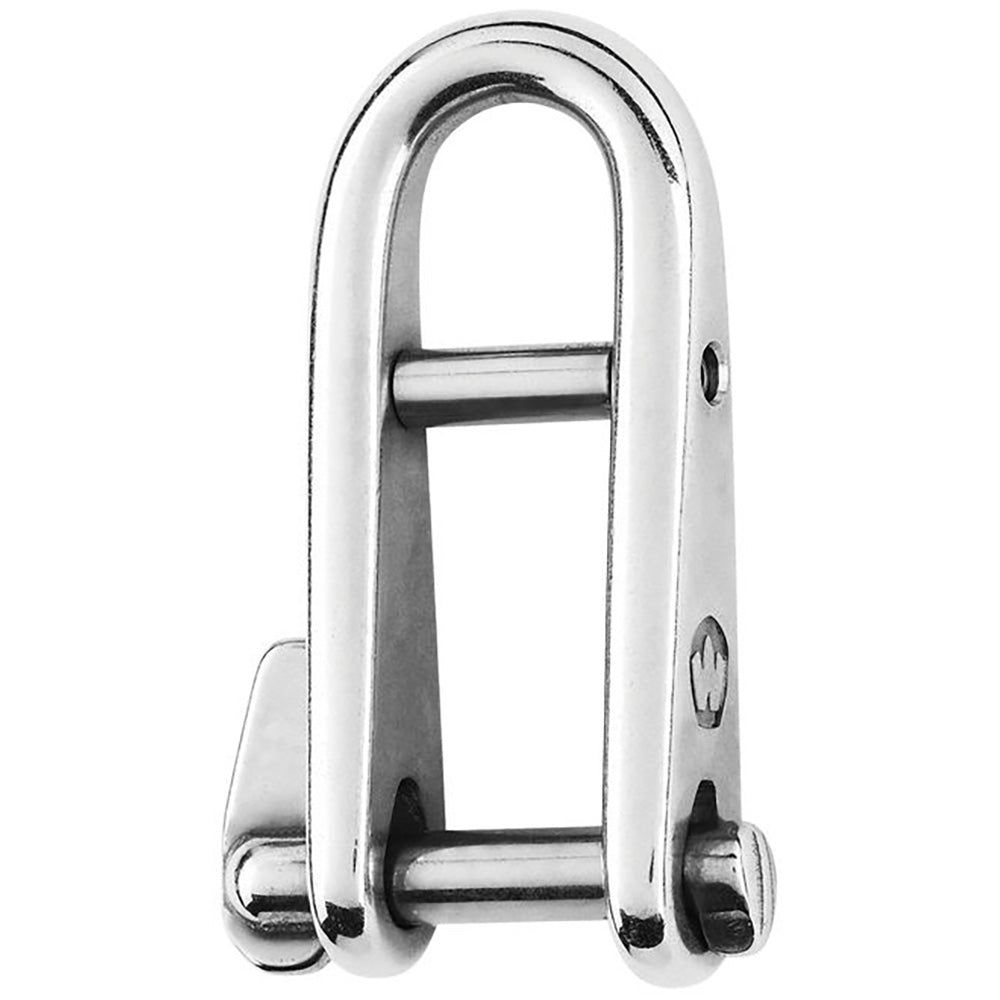

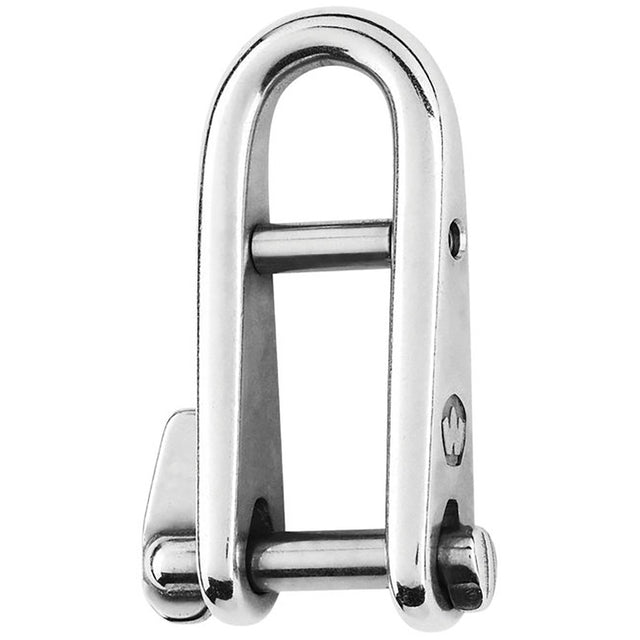

Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter
Wichard Marine | SKU:
97739
8% off
$62.53 USD
$67.68
Unit price
/
Unavailable
Shipping calculated at checkout.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter is available to special order.
Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter
$62.53 USD
$67.68
Unit price
/
Unavailable
Description
Description
HR Key Pin Shackle With Bar - 5mm Pin Diameter
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Perfect product for halyards or applications requiring opening/closing the shackle often
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 1050 / (kg) 480
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.068 / (g) 31

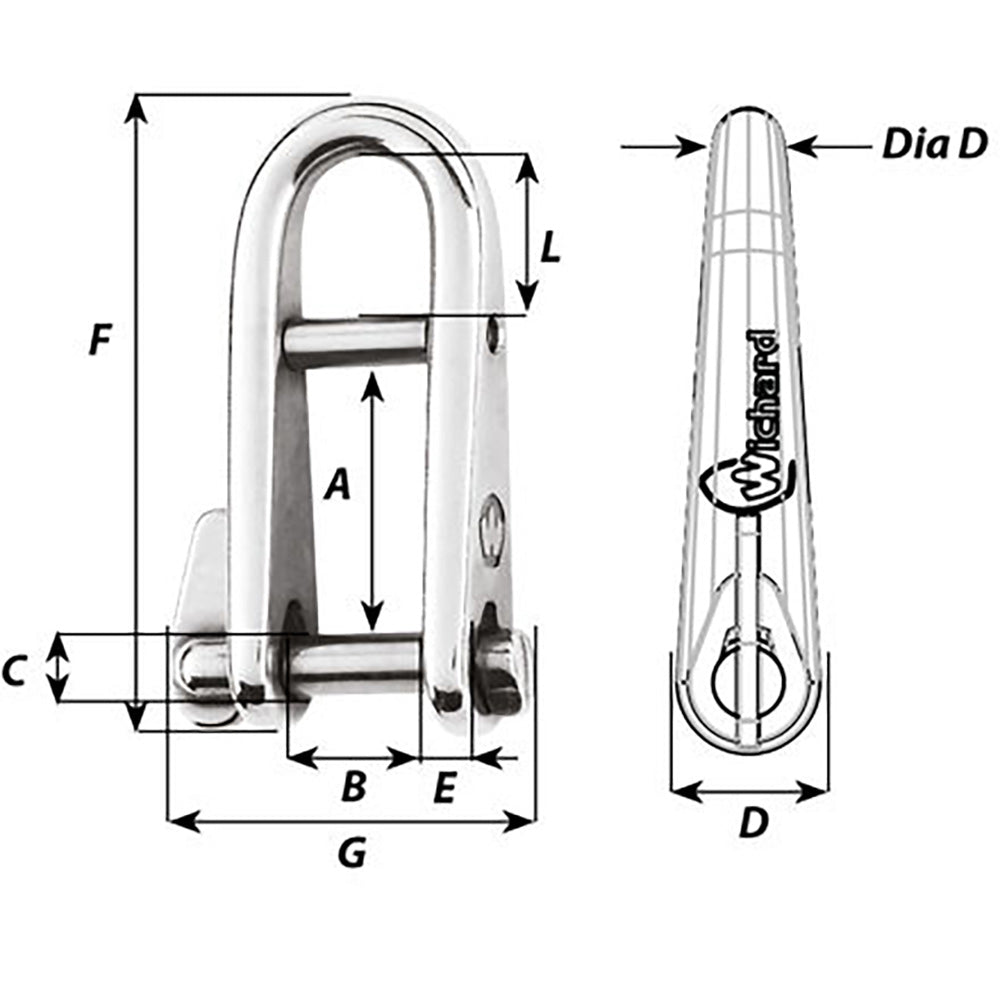

Dimensions:
- A: (inch) 1 29/64" / (mm) 37
- B: (inch) 33/64" / (mm) 13
- C: (inch) 13/64" / (mm) 5
- D: (inch) 7/16" / (mm) 11
- E: (inch) 5/32" / (mm) 4
- F: (inch) 1 59/64" / (mm) 49
- G: (inch) 1 7/32" / (mm) 31
- L: (inch) 15/32" / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
