Wichard Double Folding Pad Eye - 10mm Diameter - 25/64"
Order your Wichard sailing part(s) now, ships in 1–2 days and arrives at your doorstep in 5-6 business days. Hardware that makes your time on the water stress free and more memorable.
As soon as your shipping label is created, we’ll send you tracking details so you know exactly when to expect your delivery. Our friendly support team is on standby to assist you, and while holidays can affect timing, we’ll make sure you're always in the loop.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard Double Folding Pad Eye - 10mm Diameter - 25/64" is available to special order.
Wichard Double Folding Pad Eye - 10mm Diameter - 25/64"
Description
Description

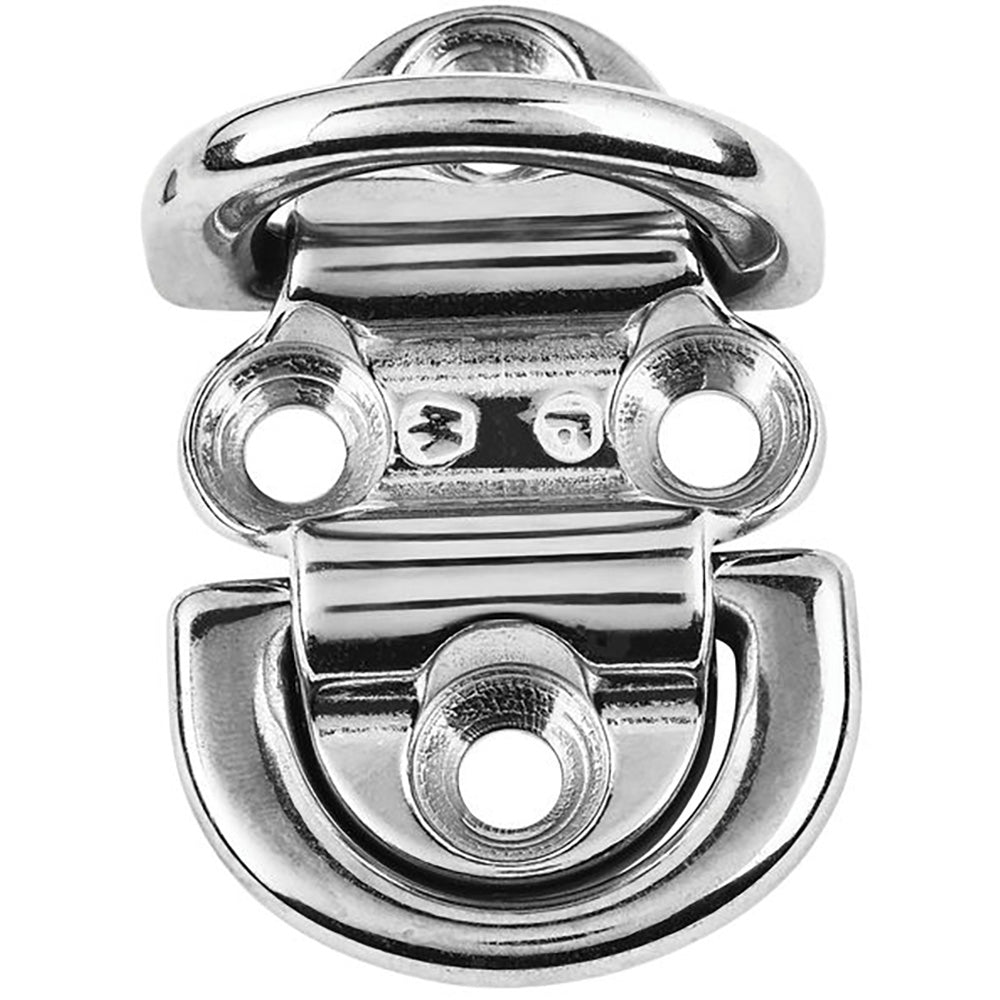

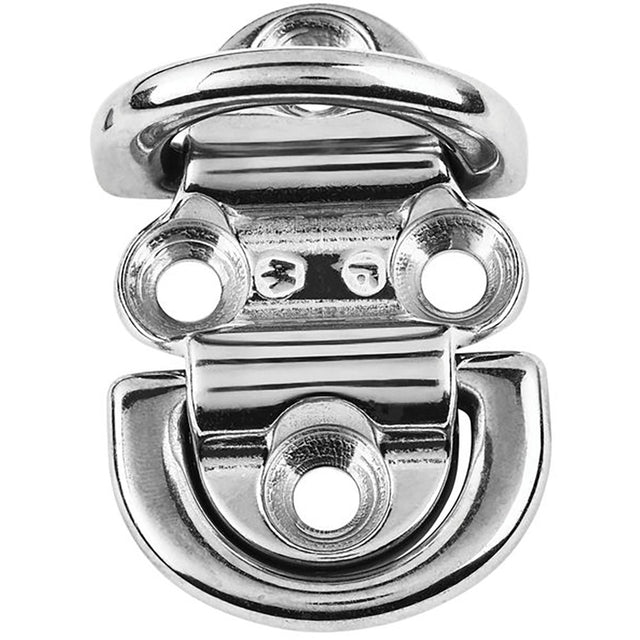

Double Folding Pad Eye - 10mm Diameter - 25/64"
Features:
- Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
Applications:
- For any fastening/attachment application
- Allows to attach several shrouds
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 10050 / (kg) 4560
- Breaking load: (lb) 19840 / (kg) 9000
- Weight: (lb) 1.089 / (g) 494

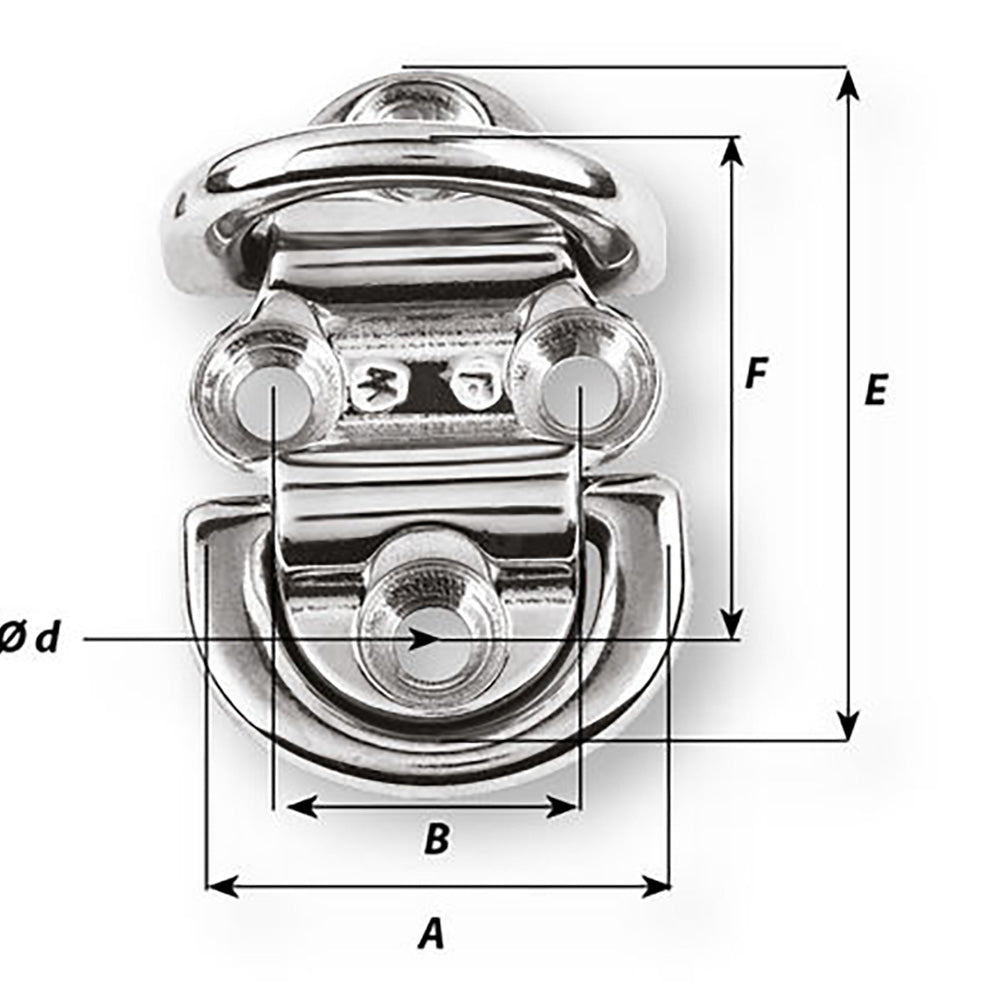

Dimensions:
- A: (inch) 2 61/64" / (mm) 75
- B: (inch) 1 49/64" / (mm) 45
- C: (inch) 29/32" / (mm) 23
- d diameter: (inch) 13/32" / (mm) 10.5
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 4 3/32" / (mm) 104
- F: (inch) 3 5/64" / (mm) 78
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
