Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"
Get ready to gear up with confidence! Your Harken order ships in just 2–3 business days and usually arrives in 5–6. As soon as your shipping label is created, we’ll send you tracking details so you know exactly when to expect your delivery. Our friendly support team is on standby to assist you, and while holidays can affect timing, we’ll make sure you're always in the loop.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16" is available to special order.
Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16...
Description
Description

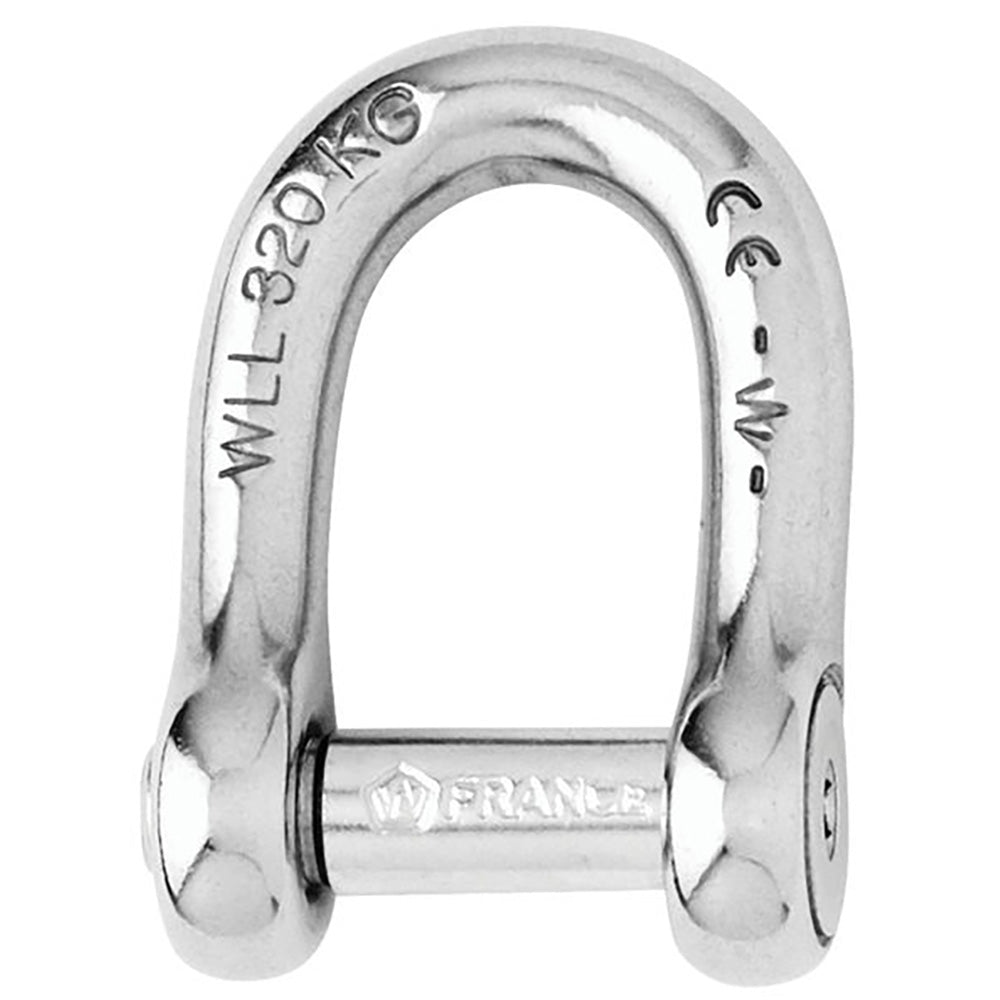

Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"
Features:
- Self-locking shackle with allen head pin D forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal to link chain and anchor
- On the halyard, avoids to damage the sails
- To be used when the clutter is reduced
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 2110 / (kg) 960
- WLL: (lb) 1190 / (kg) 540
- Breaking load: (lb) 5950 / (kg) 2700
- Weight: (lb) 0.117 / (g) 53

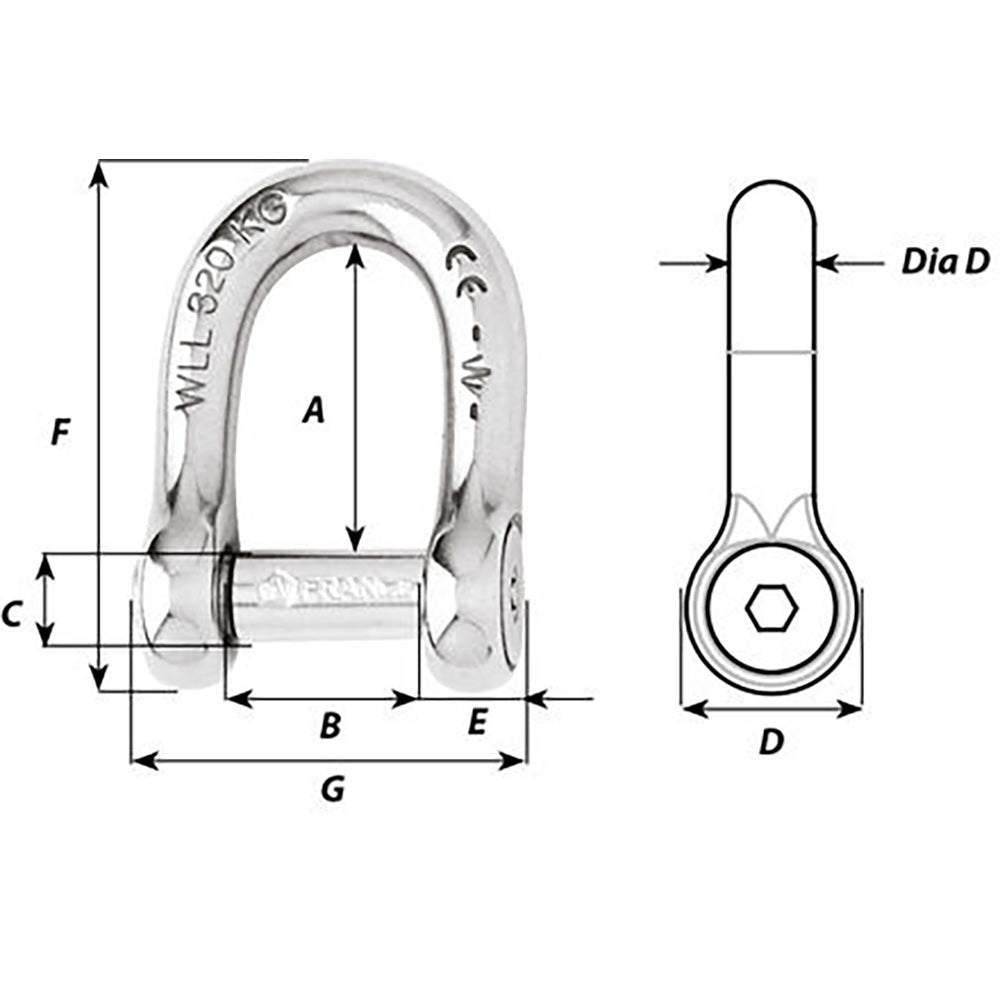

Dimensions:
- A: (inch) 1 1/32" / (mm) 26
- B: (inch)5/8" / (mm) 16
- C: (inch) 5/16" / (mm) 8
- D: (inch) 5/8" / (mm) 16
- D diameter: (inch) 5/16" / (mm) 8
- E: (inch) 9/32" / (mm) 7
- F: (inch) 1 13/16" / (mm) 46
- G: (inch) 1 19/64" / (mm) 33
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
