Wichard HR Bow Shackle - 10mm Pin Diameter
Get ready to gear up with confidence! Your Harken order ships in just 2–3 business days and usually arrives in 5–6. As soon as your shipping label is created, we’ll send you tracking details so you know exactly when to expect your delivery. Our friendly support team is on standby to assist you, and while holidays can affect timing, we’ll make sure you're always in the loop.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard HR Bow Shackle - 10mm Pin Diameter is available to special order.
Wichard HR Bow Shackle - 10mm Pin Diameter
Description
Description

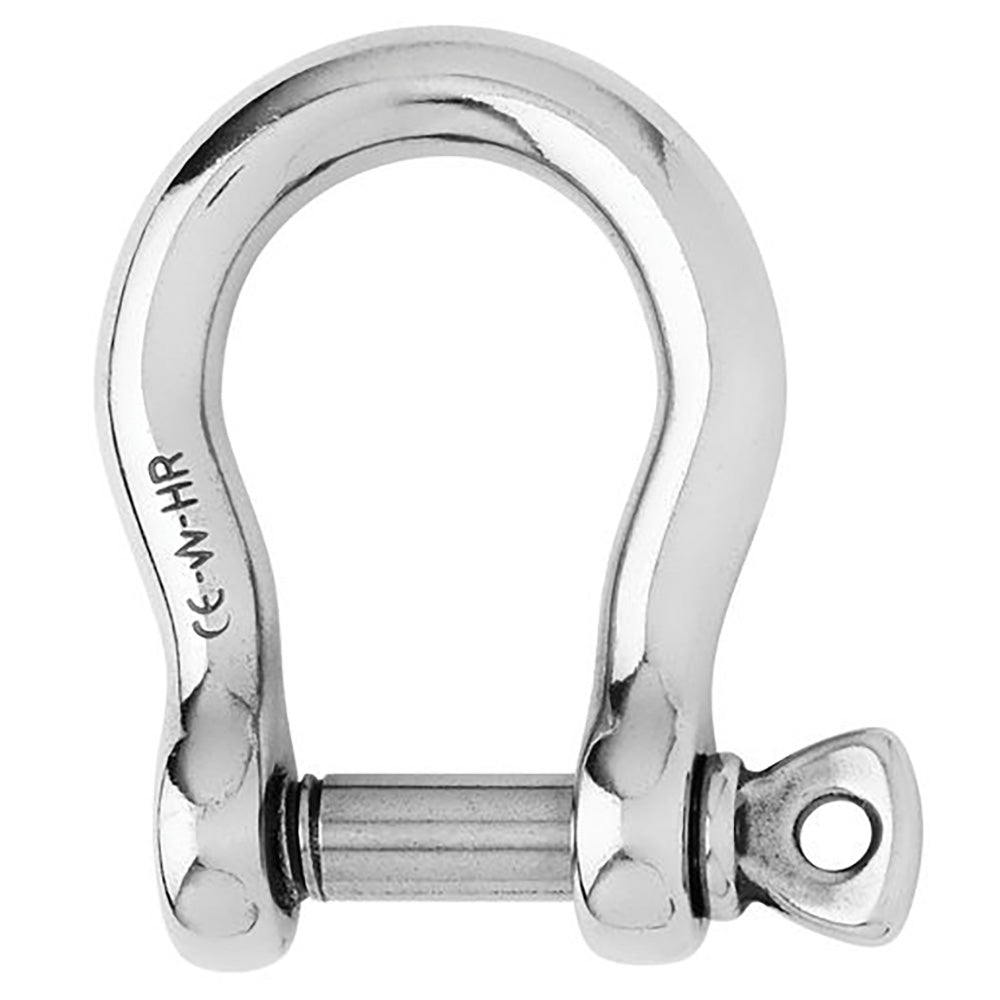

HR Bow Shackle - 10mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.3 / (g) 136

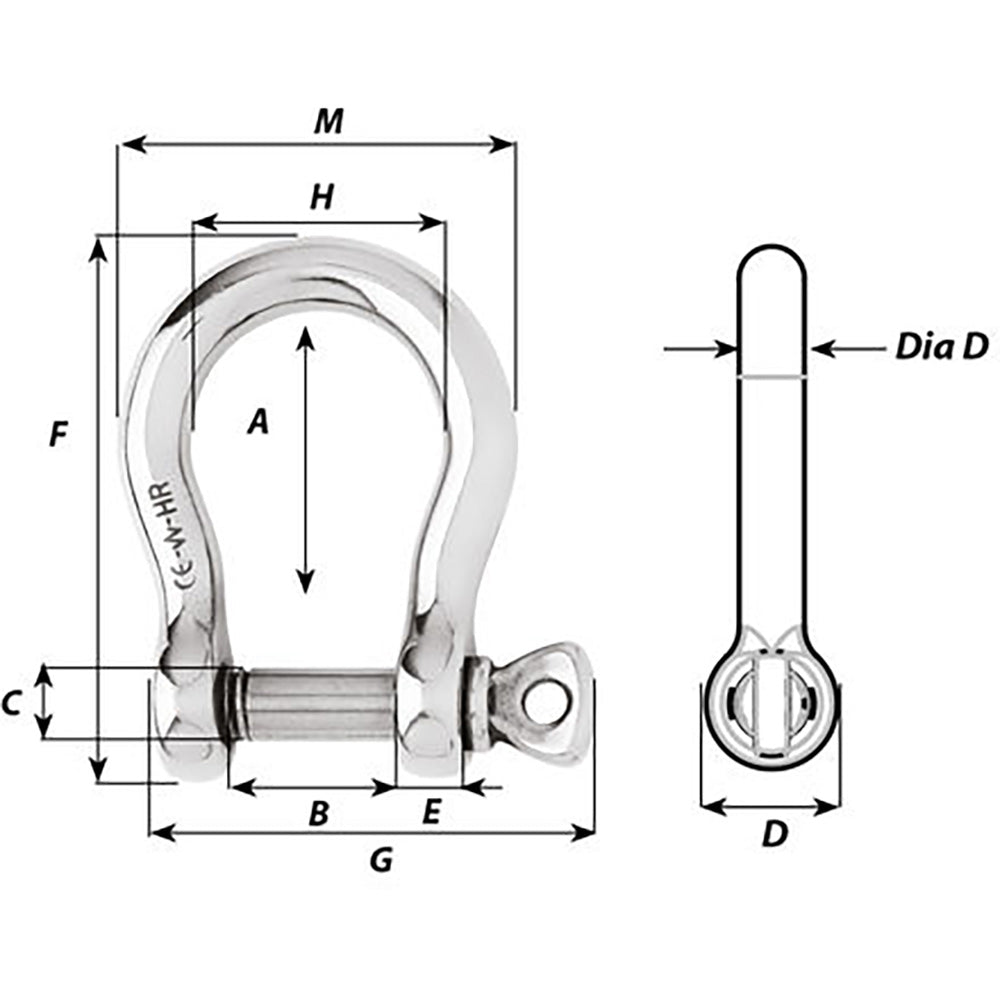

Dimensions:
- A: (inch) 1 27/32" / (mm) 47
- B: (inch) 55/64" / (mm) 22
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 23/64" / (mm) 9
- M: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
