Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"
Get ready to gear up with confidence! Your Harken order ships in just 1-2 business days and usually arrives in 5–6. As soon as your shipping label is created, we’ll send you tracking details so you know exactly when to expect your delivery. Our friendly support team is on standby to assist you, and while holidays can affect timing, we’ll make sure you're always in the loop.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard Captive Pin D Shackle - Diameter 12mm - 15/32" is available to special order.
Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"
Description
Description

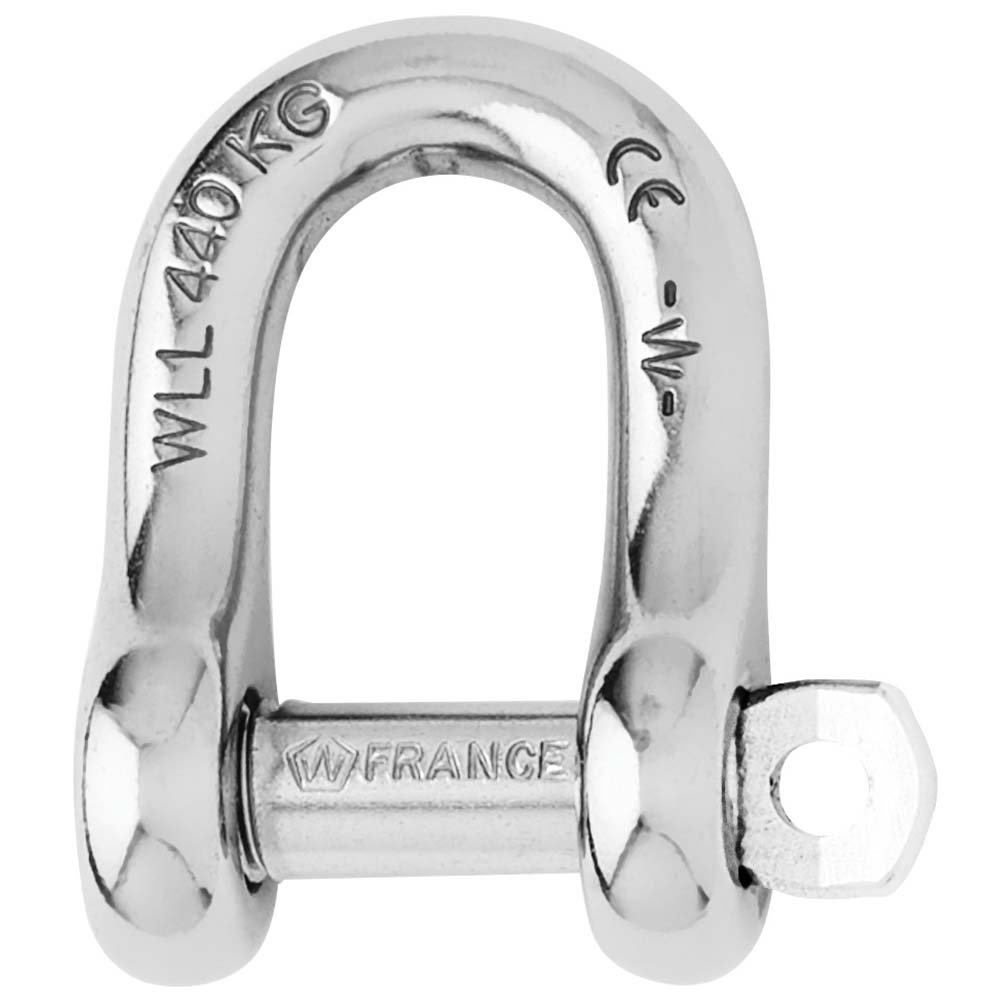

Captive Pin D Shackle - Diameter 12mm - 15/32"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 4580
- WLL (lb) 3080
- Breaking load (lb) 15430
- Weight (lb) 0.414

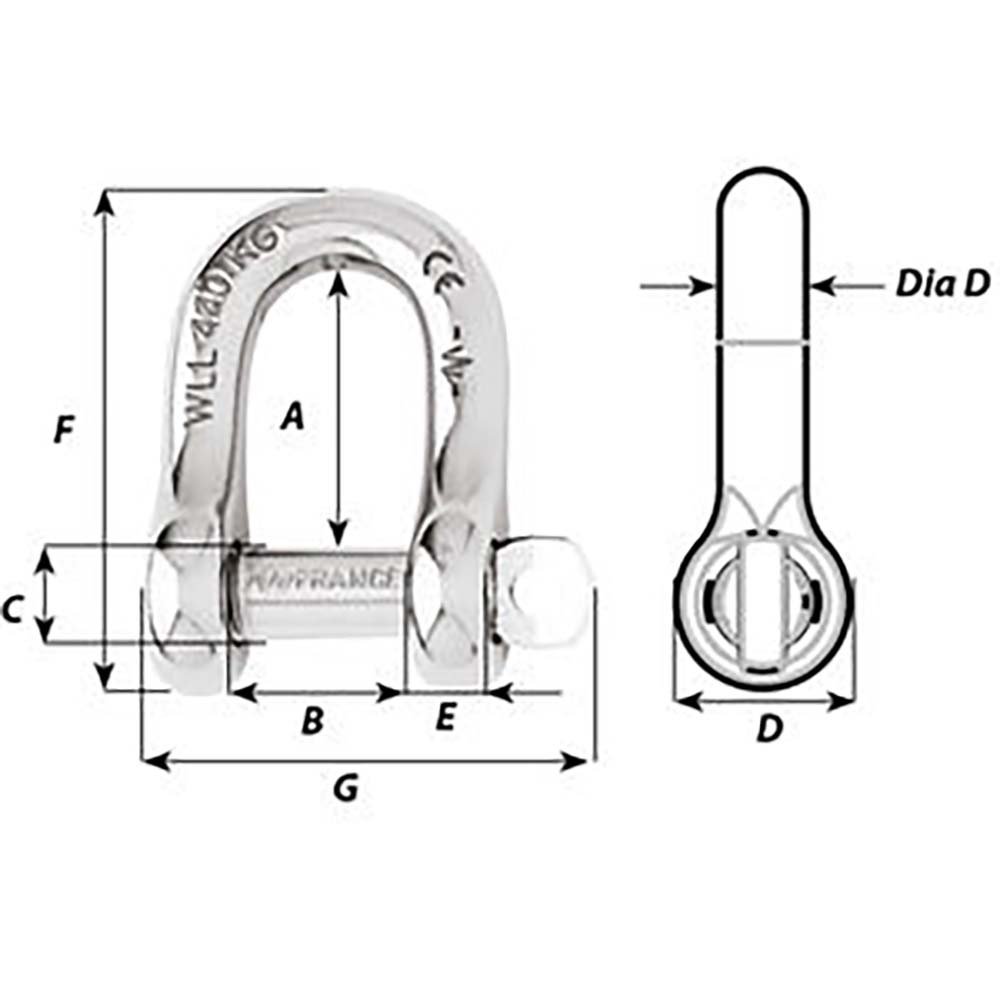

Dimensions (see 2nd image):
- A (inch) 1-17/32"
- B (inch) 15/16"
- C (inch) 33/64"
- D (inch) 15/16"
- D diameter (inch) 15/32"
- E (inch) 7/16"
- F (inch) 2-23/32"
- G (inch) 2-7/16"
