Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"
Order your Wichard sailing part(s) now, ships in 1–2 days and arrives at your doorstep in 5-6 business days. Hardware that makes your time on the water stress free and more memorable.
As soon as your shipping label is created, we’ll send you tracking details so you know exactly when to expect your delivery. Our friendly support team is on standby to assist you, and while holidays can affect timing, we’ll make sure you're always in the loop.
Get 10% Off your next in-store purchase and earn WaveRider Rewards Points as a valued member of the AFLOAT Community! (must be enrolled in WaveRider Rewards) Learn More
Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" is available to special order.
Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"
Description
Description

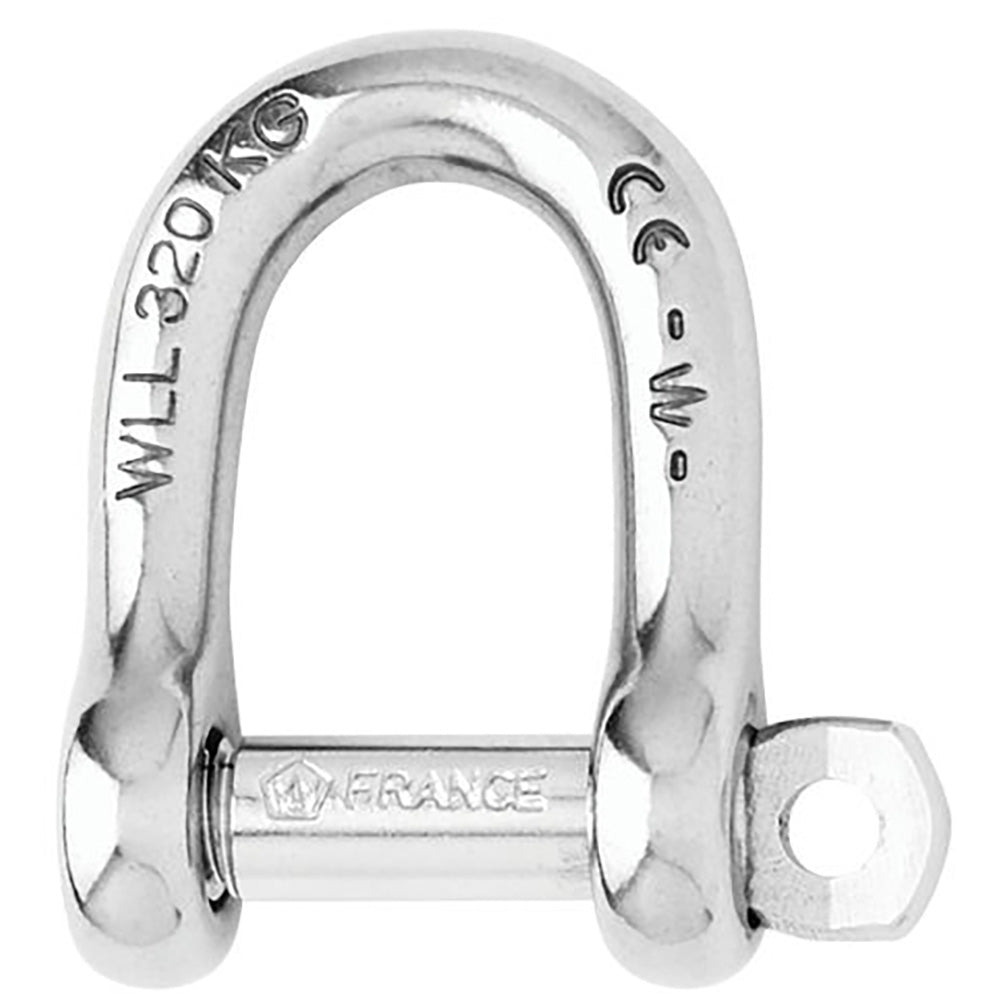

Self-Locking D Shackle - 12mm Diameter - 15/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 4580 / (kg) 2080
- WLL: (lb) 2640 / 1200 (kg)
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.425 / (g) 193

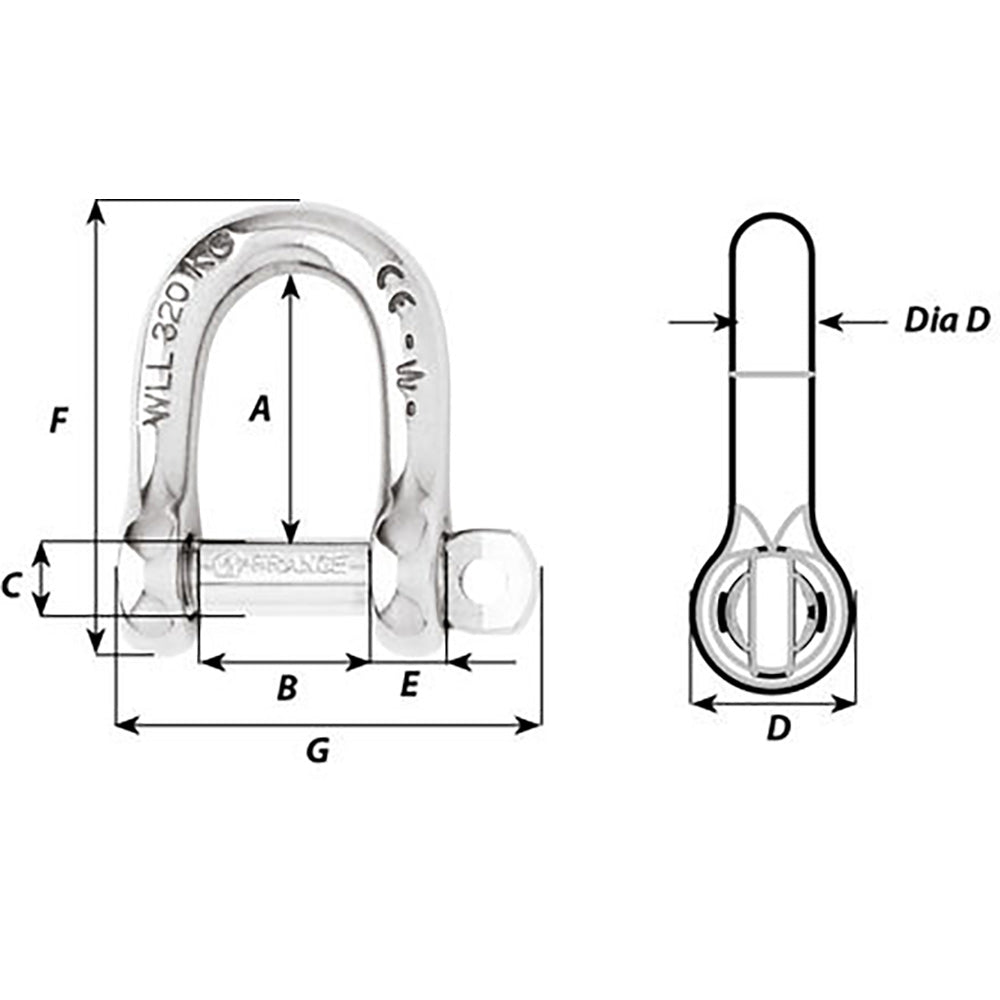

Dimensions:
- A: (inch) 1-21/32" / (mm) 42
- B: (inch) 1-1/16" / (mm) 27
- C: (inch) 15/32" / (mm) 12
- D: (inch) 15/16" / (mm) 24
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 7/16" / (mm) 11
- F: (inch) 2-7/8" / (mm) 73
- G: (inch) 2-7/16" / (mm) 62
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
